Servo System

Our Range

Explore Servo System

Browse the Servo System we stock, supply and support across India.

Switching Stepper Driver
R5 Series AC Servo Drives

R5 Series AC servo drive — 5th-gen high-performance drive with auto-tuning, rich I/O, high dynamic response, STO safety, 0.05–2.3 kW power range.

Inquiry Detail Chat with Expert
R6 Series AC Servo Drives
R6 Series AC Servo Drives

R6 Series AC servo drive — 6th-gen high-performance servo based on ARM+FPGA + R-AI 2.0, supports EtherCAT/RS485, 0.1–3 kW, STO safety.

Inquiry Detail Chat with Expert

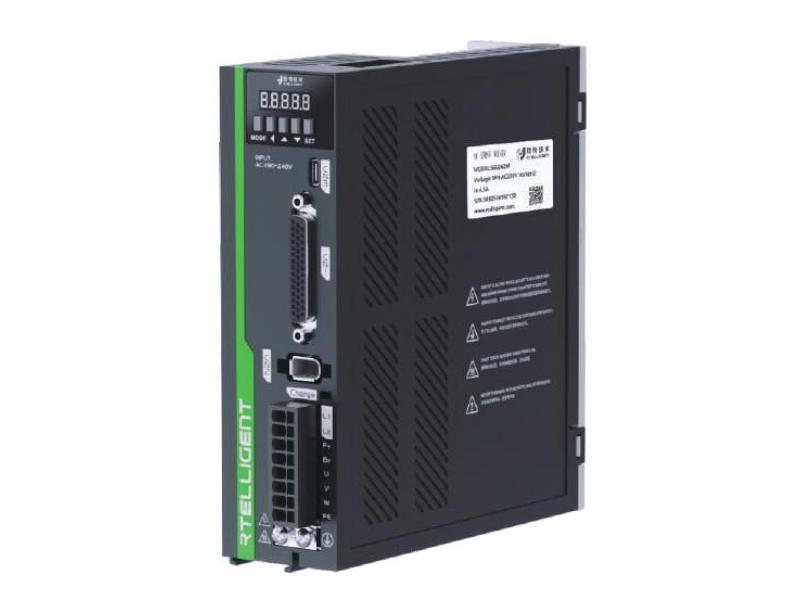

S6L Series AC Servo Drives
S6L Series AC Servo Drives

S6L Series AC servo drive — 6th-gen cost-effective servo, 100W–2000W power range, RS485 Modbus networking, position/speed/torque control, absolute encoder.

Inquiry Detail Chat with Expert

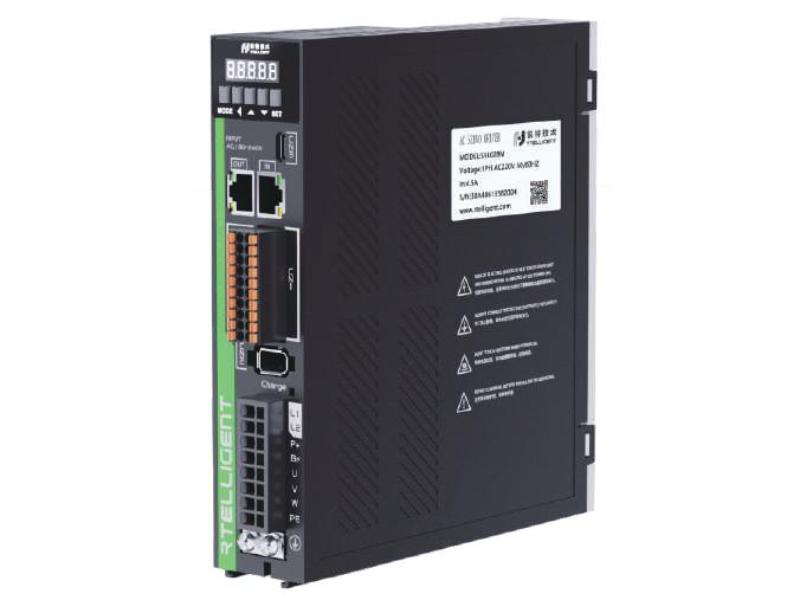

S5L Series AC Servo Drives
S5L Series AC Servo Drives

S5L Series AC servo drive — 5th-gen cost-effective servo, 50W–2000W power range, RS485 Modbus networking, built-in PLC programming, position/speed/torque control.

Inquiry Detail Chat with Expert
R6 Series AC Servo Drives
RSDA Series AC Servo Motor

These AC servo motors feature an optimized magnetic circuit design based on SMD technology. Built with rare-earth neodymium-iron-boron permanent magnet rotors, they deliver high torque density, strong peak torque performance, low noise, reduced heat generation, and lower power consumption. An optional permanent-magnet brake provides precise and responsive operation, making it ideal for Z-axis applications.

Inquiry Detail Chat with Expert
R6 Series AC Servo Drives
RSNA Series AC Servo Motor

Rtelligent RSN series AC servo motors, based on Smd optimized magnetic circuit design, use high magnetic density stator and rotor materials, and have high energy efficiency.Multiple types of encoders are available, including optical, magnetic, and multi-turn absolute encoder.

Inquiry Detail Chat with Expert
R6 Series AC Servo Drives
RSM Series Servo Motor

RTELLIGENT RSM Series ( flange size 110/ 130 mm) AC Servo Motors are designed for high-performance industrial automation applications. With an optimized magnetic circuit design (SMD) and high magnetic-density stator/rotor materials, they deliver superior energy efficiency, precise control, and reliable operation in a wide range of motion control scenarios.

Inquiry Detail Chat with Expert
R6 Series AC Servo Drives
Integrated Low-Voltage Servo Motor

The IDV series is a general integrated low-voltage servo motor developed by Rtelligent. Equipped with position / speed / torque control mode, support 485 communication to achieve communication control of the integrated motor.

Inquiry Detail Chat with Expert
Overview

Digital AC Servo Control System

A digital AC servo control system pairs a servo drive with a matched servo motor and encoder feedback. RB Automation builds digital AC servo control systems in India using R5, R6, S5L and S6L AC servo drives with RSHA servo motors, selected against your speed, torque and positioning duty.

FAQs

Servo System FAQs

Straight answers to what buyers ask us most about Servo System.

An AC servo drive is an electronic controller that precisely regulates the speed, position, and torque of an AC servo motor. It receives command signals from a PLC, compares them with encoder feedback, and adjusts voltage and frequency for precise motion. Used in CNC, packaging, textile, and robotic applications.

EtherCAT is a high-speed industrial Ethernet protocol enabling real-time communication between a motion controller and multiple servo drives with microsecond-level synchronization. Unlike RS485, it supports multi-axis coordination with near-zero latency, making it ideal for precision machining and robotics. RB Automation R6 Series drives support EtherCAT.

The R5 Series is a standard-performance AC servo drive suitable for most industrial automation tasks. The R6 Series is a 6th-generation high-performance drive featuring ARM+FPGA architecture with R-AI 2.0 technology, EtherCAT communication, and STO safety certification — designed for demanding multi-axis and high-speed applications.

For cost-sensitive machines, the S5L (50 W-2000 W) and S6L (100 W-2000 W) series offer position, speed and torque control with RS485 Modbus networking. The S5L adds built-in PLC programming and the S6L supports an absolute encoder. For higher dynamic response, auto-tuning or EtherCAT, choose the R5 (0.05-2.3 kW) or R6 (0.1-3 kW) series instead.

Servo system price depends on the drive series, power rating, motor frame and encoder type, brake option, cable length and quantity. RB Automation quotes a matched drive, motor and cable set once your load, speed and control interface are known. Call +91 8511104864 or email contact@rbautomate.com with the axis details for a quotation.

RB Automation supplies Rtelligent servo drives and motors, including the RSNA and RSM motor series and the IDV integrated low-voltage servo motor, from Ahmedabad, Gujarat to machine builders across India. RB Automation is an authorised technical partner of Rtelligent. Use the Inquiry or Chat with Expert buttons on this page, or WhatsApp +91 9898739737 with your requirement.

Yes. RB Automation supports OEM builders with servo sizing, drive and motor matching, and bulk supply for series production of CNC, packaging, textile and robotic machines. Sharing inertia, speed, torque and communication needs such as pulse, RS485 or EtherCAT lets the team recommend the right series and quote for your volumes. Send details through the inquiry form on this page.
