RSDA Series AC Servo Motor

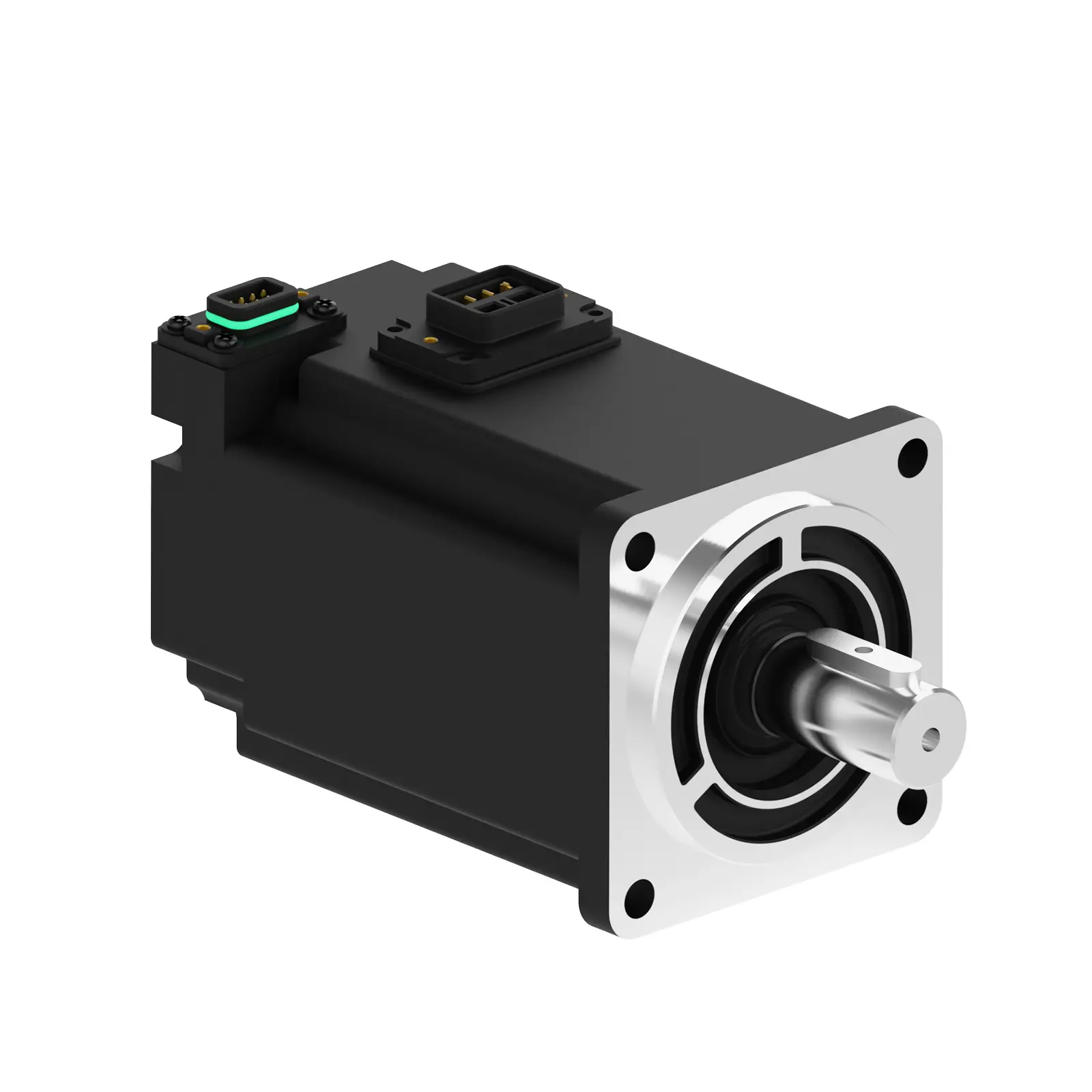

RSDA Series AC Servo Motor Overview
These AC servo motors feature an optimized magnetic circuit design based on SMD technology and use rare-earth neodymium-iron-boron permanent magnet rotors to deliver high torque density, strong peak torque, low noise, reduced temperature rise, and lower current consumption. The RSDA series is built with an ultra-short body to save installation space. An optional permanent-magnet brake offers quick, sensitive response, making it ideal for Z-axis applications.
- Rated voltage: 220VAC
- Rated power range: 100W to 1kW
- Frame sizes: 60mm / 80mm
- Encoder options: 17-bit magnetic / 23-bit optical absolute encoder
- Designed for low noise and minimal temperature rise
- Supports overload capacity up to 3×
Naming Rule
RSNA
1
M
2
06
3
J
4
13
5
30
6
A
7
-
Z
8
- Product series
- Motor interia code
S: Small inertia
M: Medium inertia
H: large inertia - Motor flange size
06: 60mm 13: 130mm - Encoder resolution
J: 17 bits magnetic programmed single figure absolute value
G: 17 bits magnetic programmed multi-turn absolute value
L: 23 bit optical multi-turn absolute value - Motor rated torque
13: 1.3N.M 150: 15N.M - Motor rated speed
30: 3000rpm - Output mode
A: Wire type C: Connector type - Brake code
Z: With brake
*Model naming rules are only used for model meaning
analysis.
For
specific
optional models, please refer to the details page.

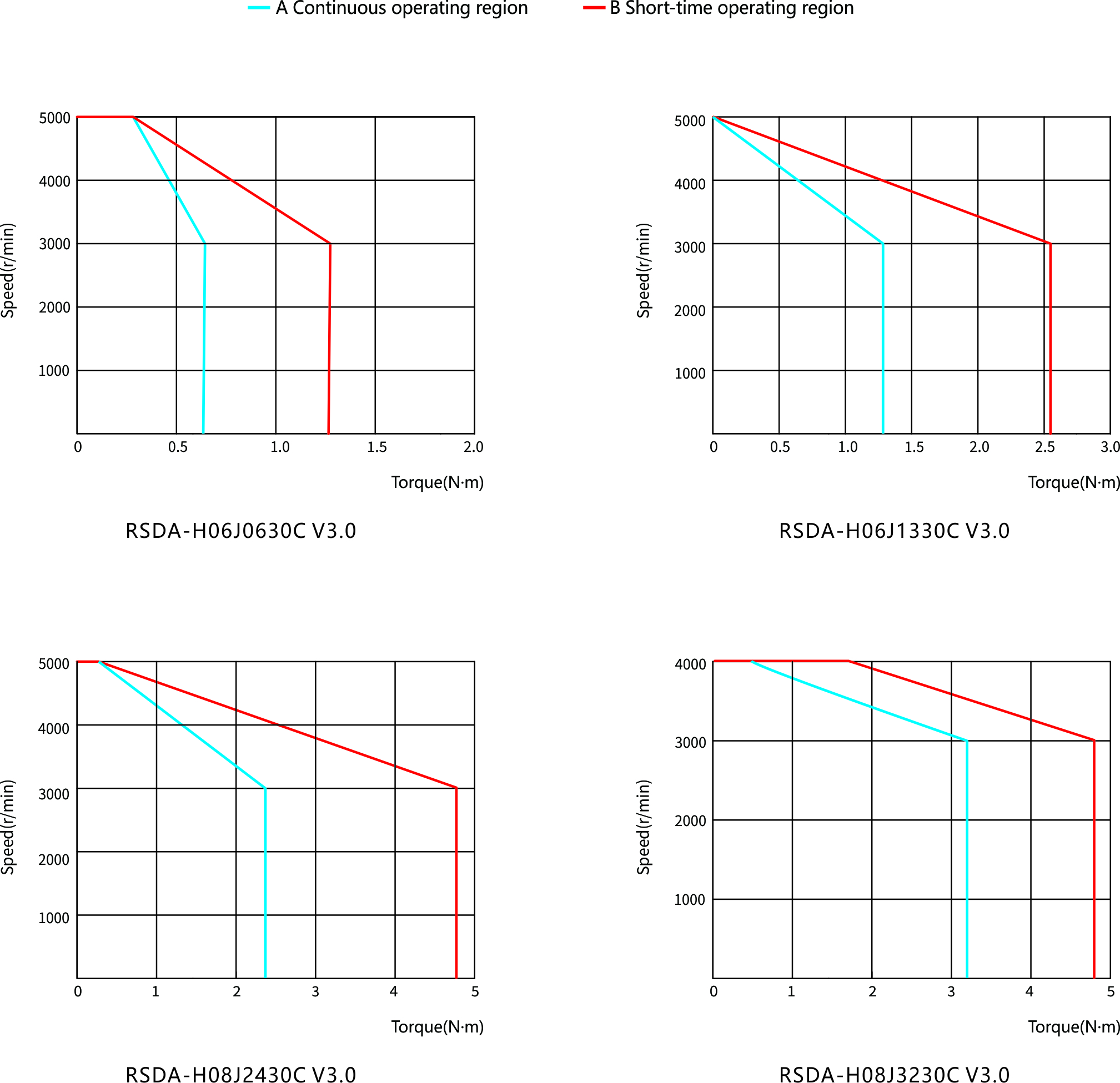

AC Servo Motor Model below Frame Size 80(mm)
| Motor | RSDA-H06J0630C V3.0 | RSDA-H06J1330C V3.0 | RSDA-H08J2430C V3.0 | RSDA-H08J3230C V3.0 |
|---|---|---|---|---|
| Rated power (W) | 200 | 400 | 750 | 1000 |
| Rated voltage (V) | 220 | 220 | 220 | 220 |
| Rated current (A) | 1.9 | 2.5 | 4.9 | 5 |
| Rated torque (N.M) | 0.64 | 1.27 | 2.39 | 3.2 |
| Maximum torque (N.M) | 1.28 | 2.54 | 4.78 | 6.4 |
| Rated speed (rpm) | 3000 | 3000 | 3000 | 3000 |
| Maximum speed (rpm) | 5000 | 5000 | 5000 | 4000 |
| Back EMF (V/Krpm) | 23.5 | 38.5 | 34 | 45 |
| Torque constant (N.M/A) | 0.33 | 0.5 | 0.49 | 0.65 |
| Wire resistance (Ω,20℃) | 8.4 | 6.5 | 1.7 | 1.5 |
| Wire inductance (mH,20℃) | 15 | 14.6 | 8.2 | 5.5 |
| Rotational inertia (×10⁻⁴ kg·m²) | 0.2 Brake 0.25 |
0.5 Brake 0.6 |
1.5 Brake 1.7 |
1.9 Brake 2.1 |
| Length L (mm) | 70.5 Brake 100.5 |
89 Brake 119 |
97 Brake 135 |
109 Brake 147 |
