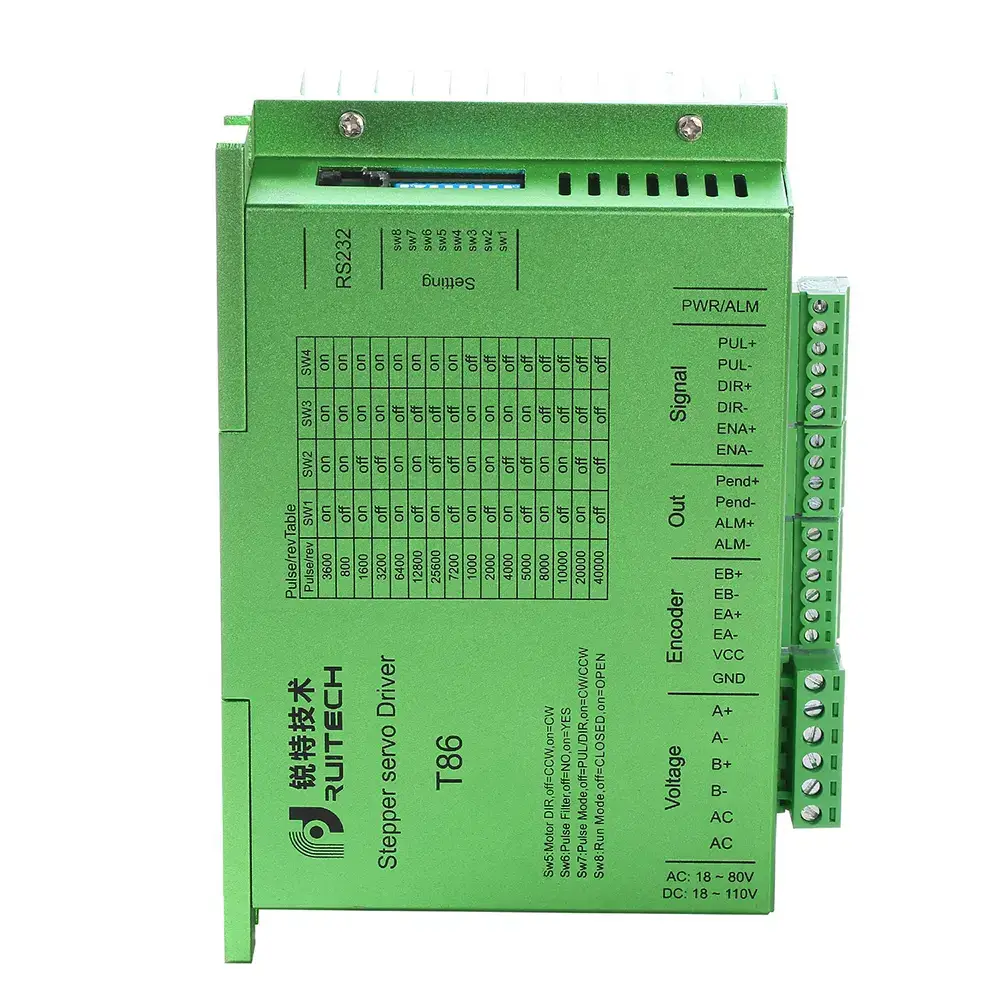

Pulse Control 2 Phase Closed Loop Stepper Drive T86

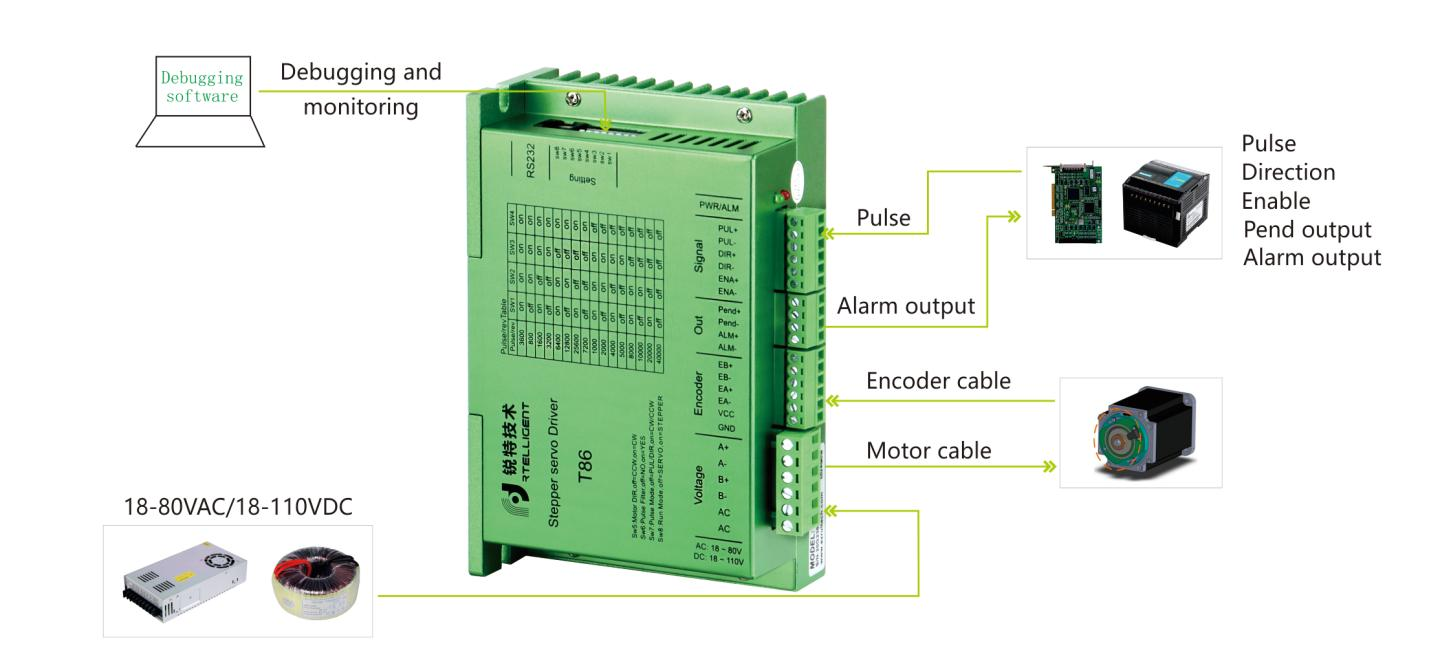

Pulse Control 2 Phase Closed Loop Stepper Drive T86 Overview
T86 closed loop stepper drive, based on 32-bit DSP platform, built-in vector control technology and servo demodulation function, combined with the feedback of closed-loop motor encoder, makes the closed loop stepper system has the characteristics of low noise, low heat, no loss of step and higher application speed, which can improve the performance of intelligent equipment system in all aspects.
- Pulse mode: PUL&DIR/CW&CCW
- Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.
- Power voltage: 18-110VDC or 18-80VAC, and 48VAC recommended.
- Typical applications: Auto-screwdriving machine, servo dispenser, wire-stripping machine, labeling machine, medical detector
Function Selection
| SW5 | Running direction | on | Forward |
| off | Backward | ||
| SW6 | Command smoothing | on | S-type acceleration and deceleration take effect |
| off | S-type acceleration and deceleration are invalid | ||
| SW7 | Pulse mode | on | CW/CCW |
| off | PUL&DIR | ||
| SW8 | Open/closed loop | on | Open loop mode |
| off | Closed loop mode |
Micro-stepping Setting
| Pulse/rev | SW1 | SW2 | SW3 | SW4 | Remarks |
|---|---|---|---|---|---|
| 3600 | on | on | on | on | The DIP switch is turned to the “3600” state and the testing software can freely change other subdivisions. |
| 800 | off | on | on | on | |
| 1600 | on | off | on | on | |
| 3200 | off | off | on | on | |
| 6400 | on | on | off | on | |
| 12800 | off | on | off | on | |
| 25600 | on | off | off | on | |
| 7200 | off | off | off | on | |
| 1000 | on | on | on | off | |
| 2000 | off | on | on | off | |
| 4000 | on | off | on | off | |
| 5000 | off | off | on | off | |
| 8000 | on | on | off | off | |
| 10000 | off | on | off | off | |
| 20000 | on | off | off | off | |
| 40000 | off | off | off | off |
