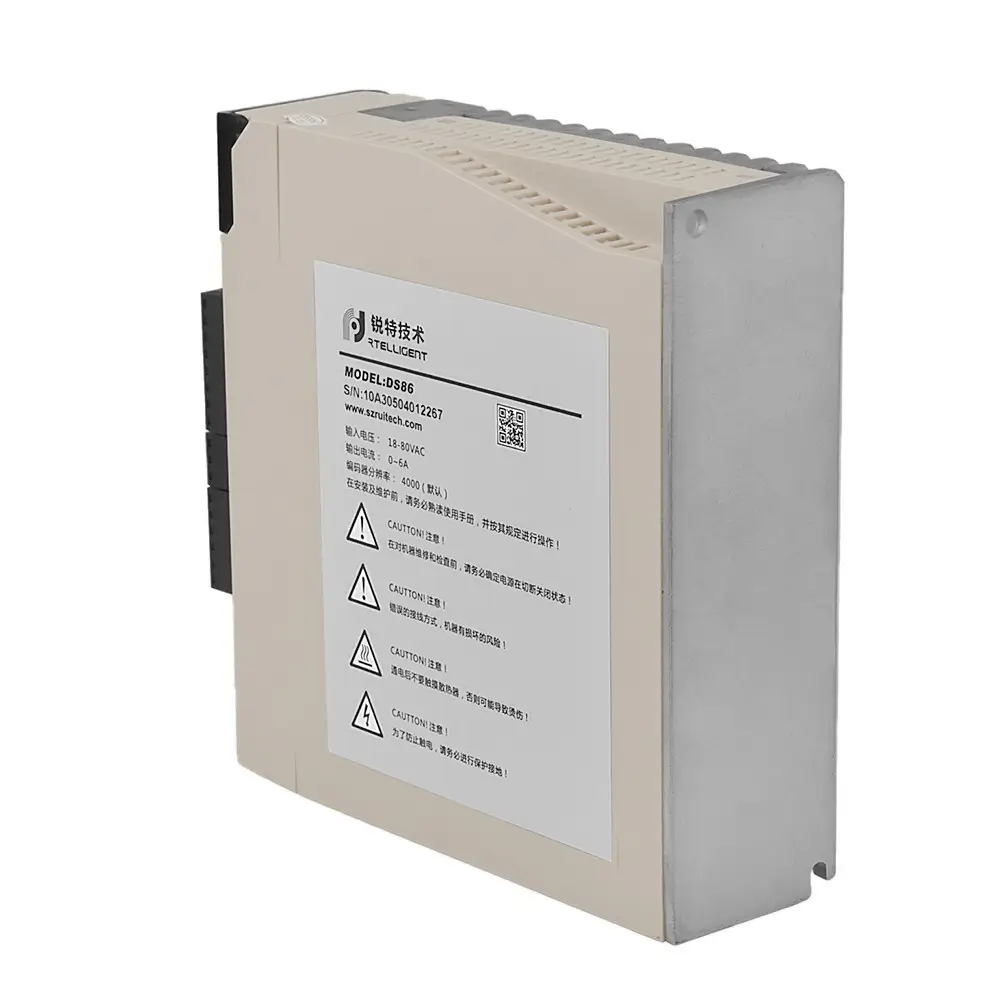

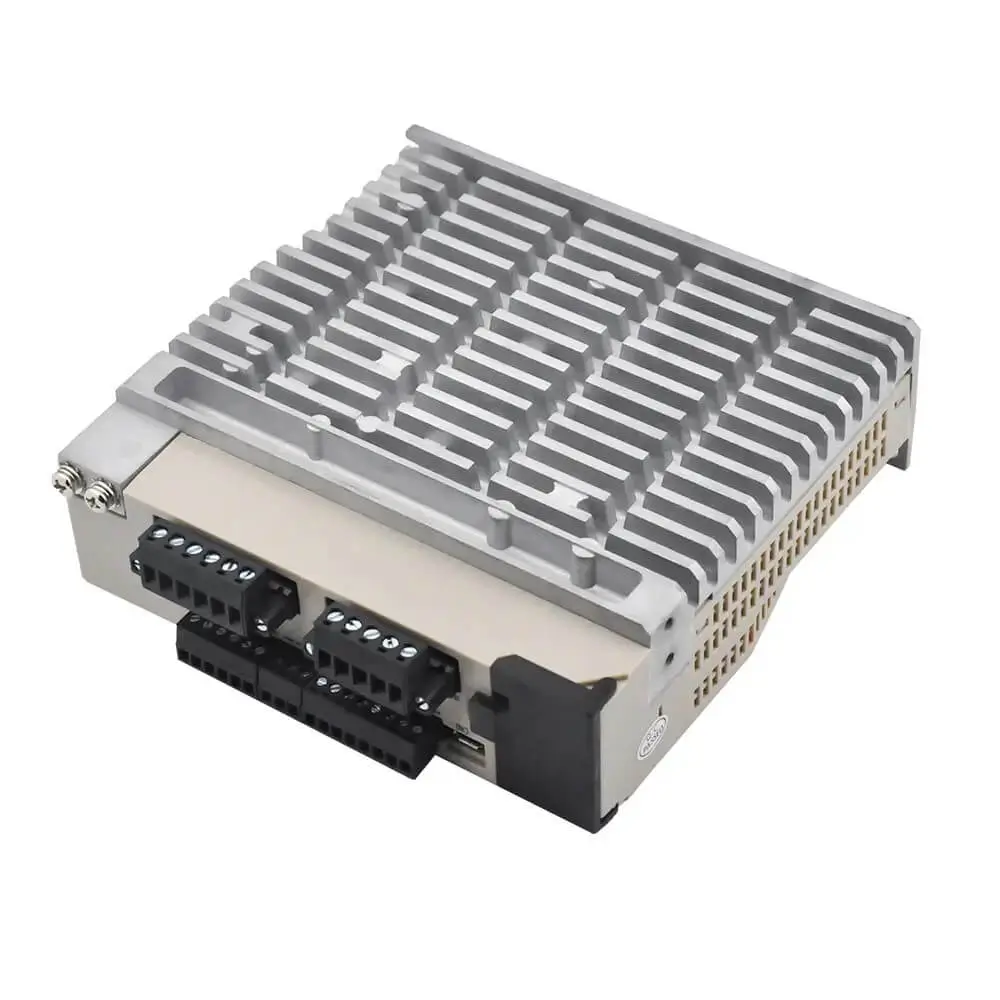

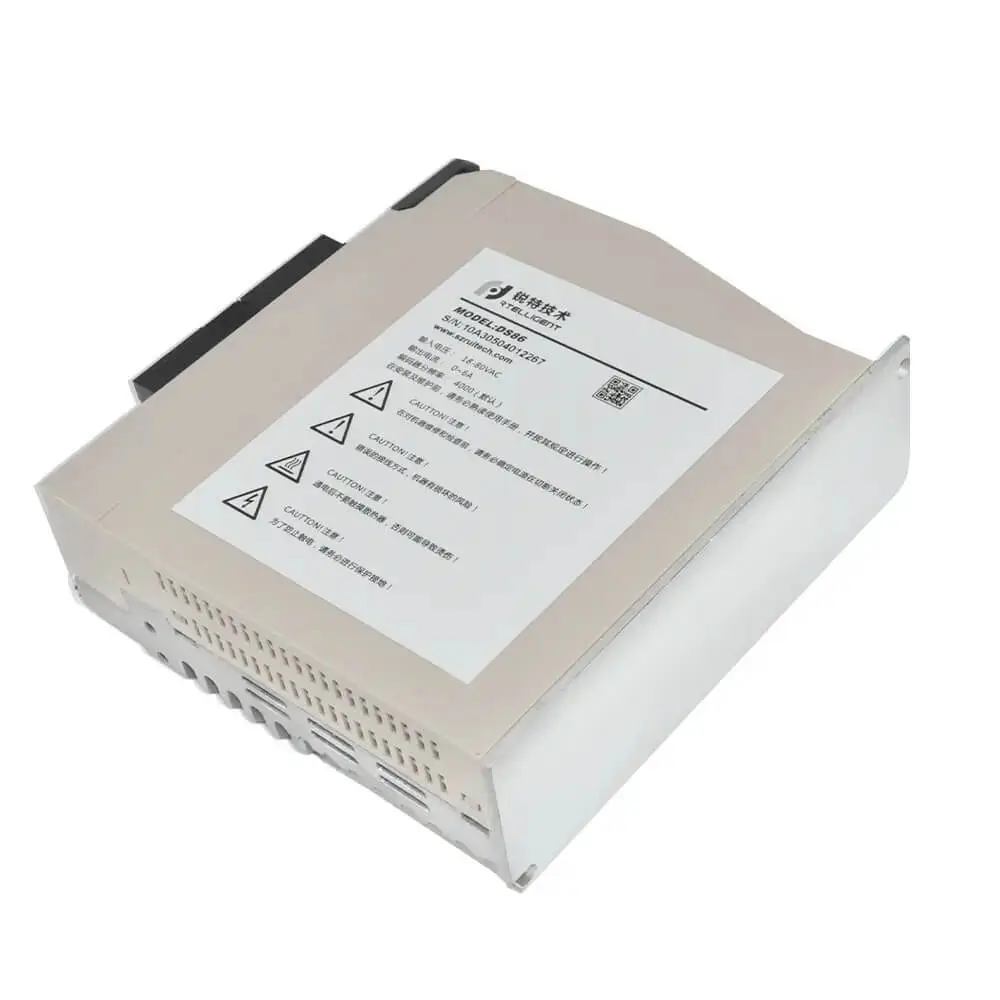

Hybrid 2 Phase Closed Loop Stepper Drive DS86
Hybrid 2 Phase Closed Loop Stepper Drive DS86 Overview
The DS86 digital display closed-loop stepper drive is built on an advanced 32-bit DSP platform and incorporates vector control technology along with servo demodulation. This closed-loop stepper servo system delivers smooth operation with low noise and minimal heat generation, ensuring reliable and efficient performance.
DS86 is used to drive the two-phase closed-loop motor below 86mm
- Pulse mode: PUL&DIR/CW&CCW
- Signal level: 3.3-24V compatible; serial resistance not required for the application of PLC.
- Power voltage: 24-100VDC or 18-80VAC, and 75VAC recommended.
- Typical applications: Auto-screwdriving machine, wire-stripping machine, labeling machine, engraving machine, electronic assembly equipment, etc.

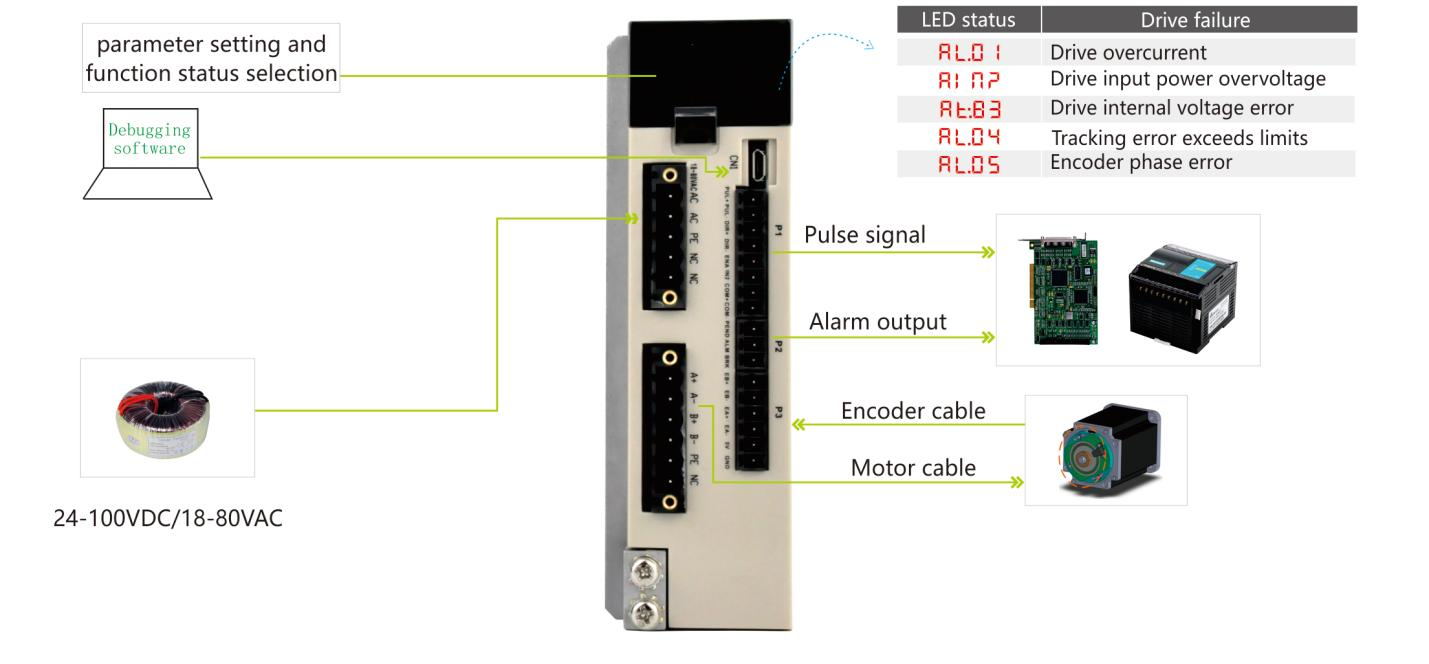

Pulse Mode
Pulse and direction (PUL + DIR)
Double pulse (CW +CCW)
| Power supply | 18-80VAC |
|---|---|
| Control interface | PUL+DIR; CW+CCW |
| Microstep settings | 200 to 65535 |
| Output current | 0~6A (sine peak) |
| Encoder resolution | 4000 (default) |
| Input signal | 3 photoelectric isolation digital signal inputs, high level can be directly received, 5 to 24V DC level |
| Output signal | 1 channel photoelectric isolation digital signal output, maximum tolerance voltage 28V, maximum inputting or pulling current 50mA |
