New Generation 2 Phase Closed Loop Stepper Drive T60S /T86S

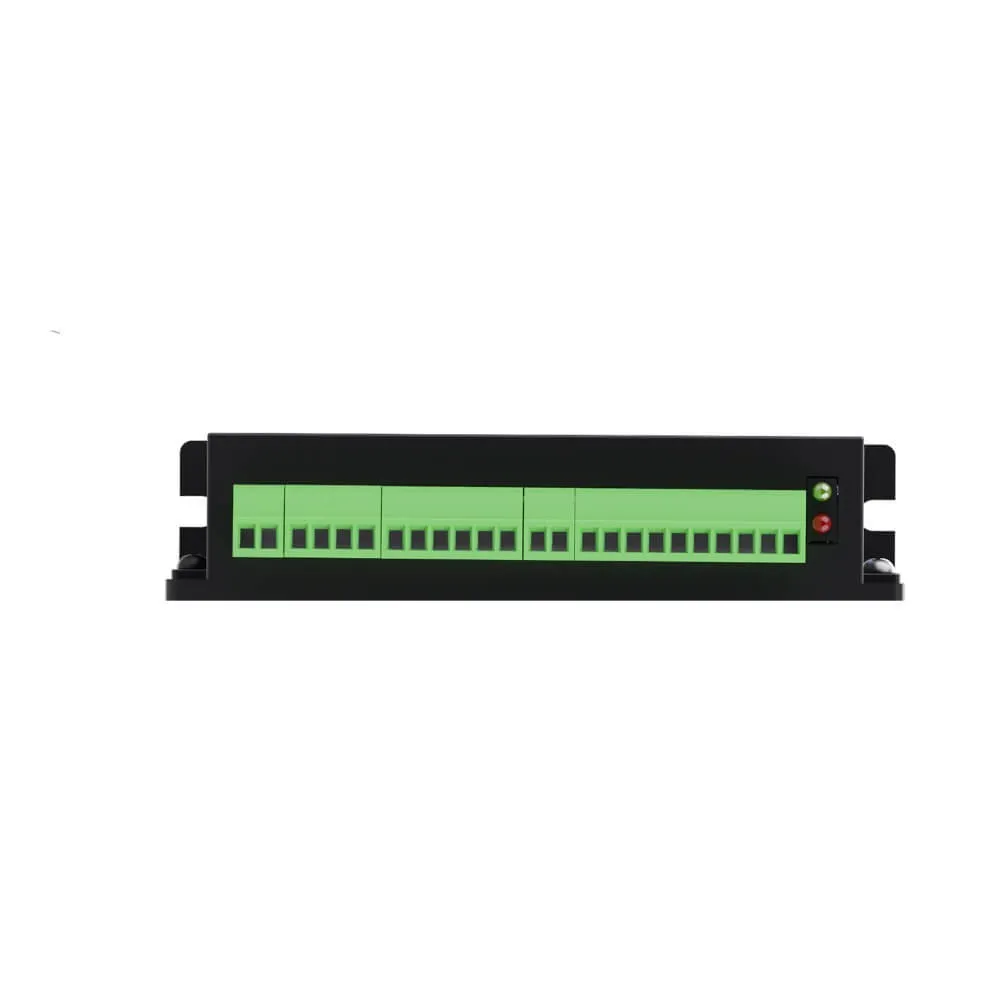

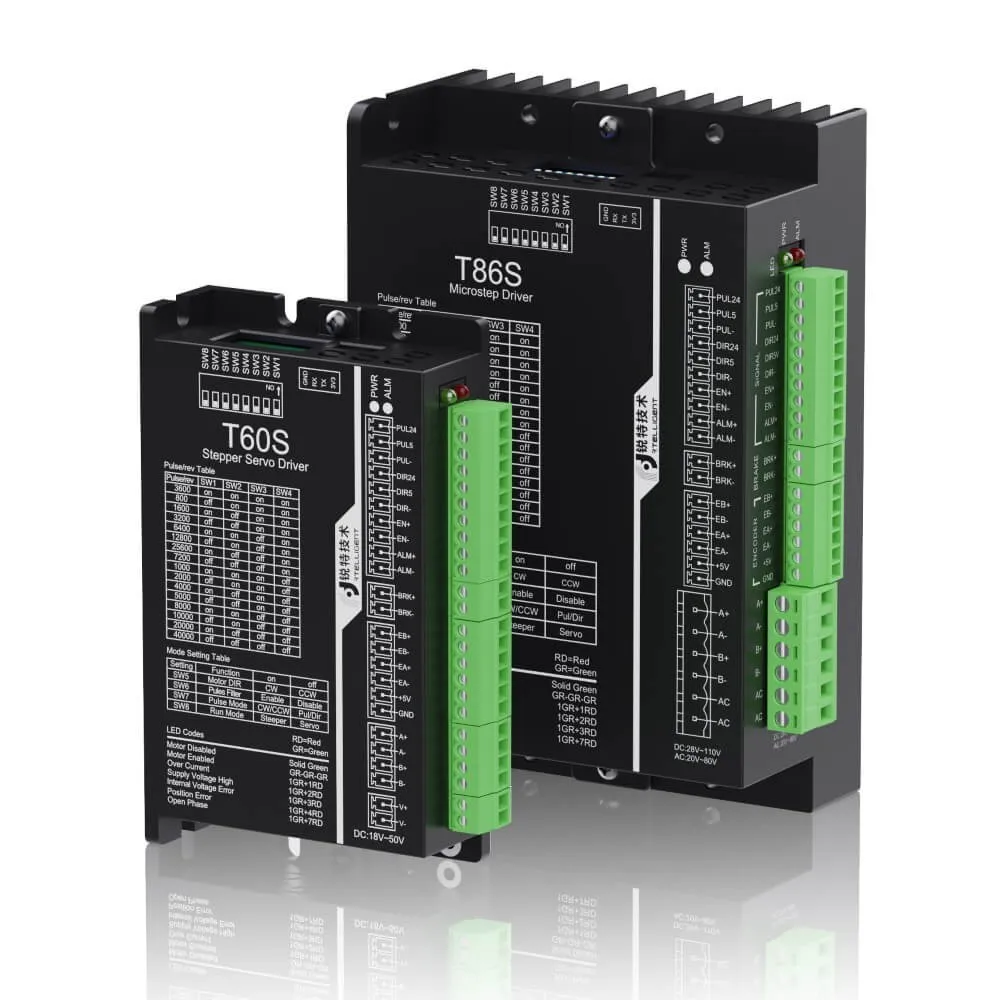

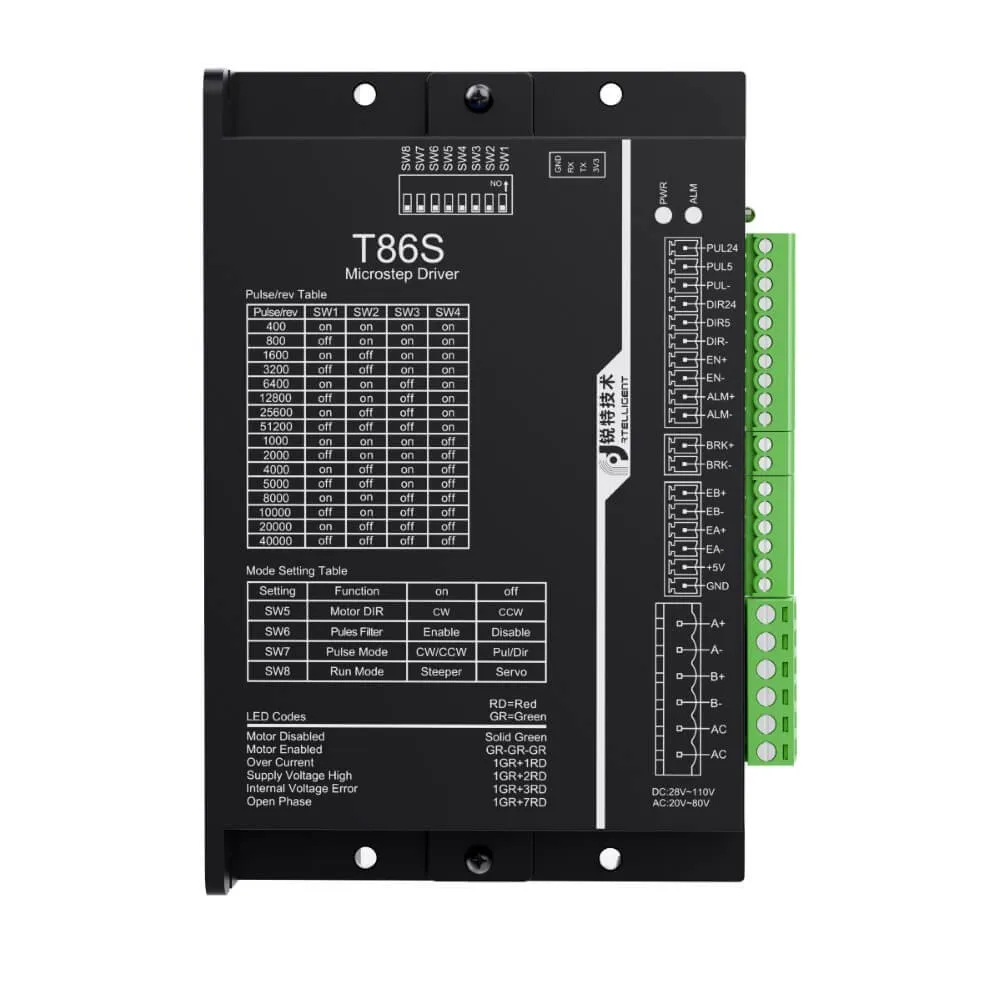

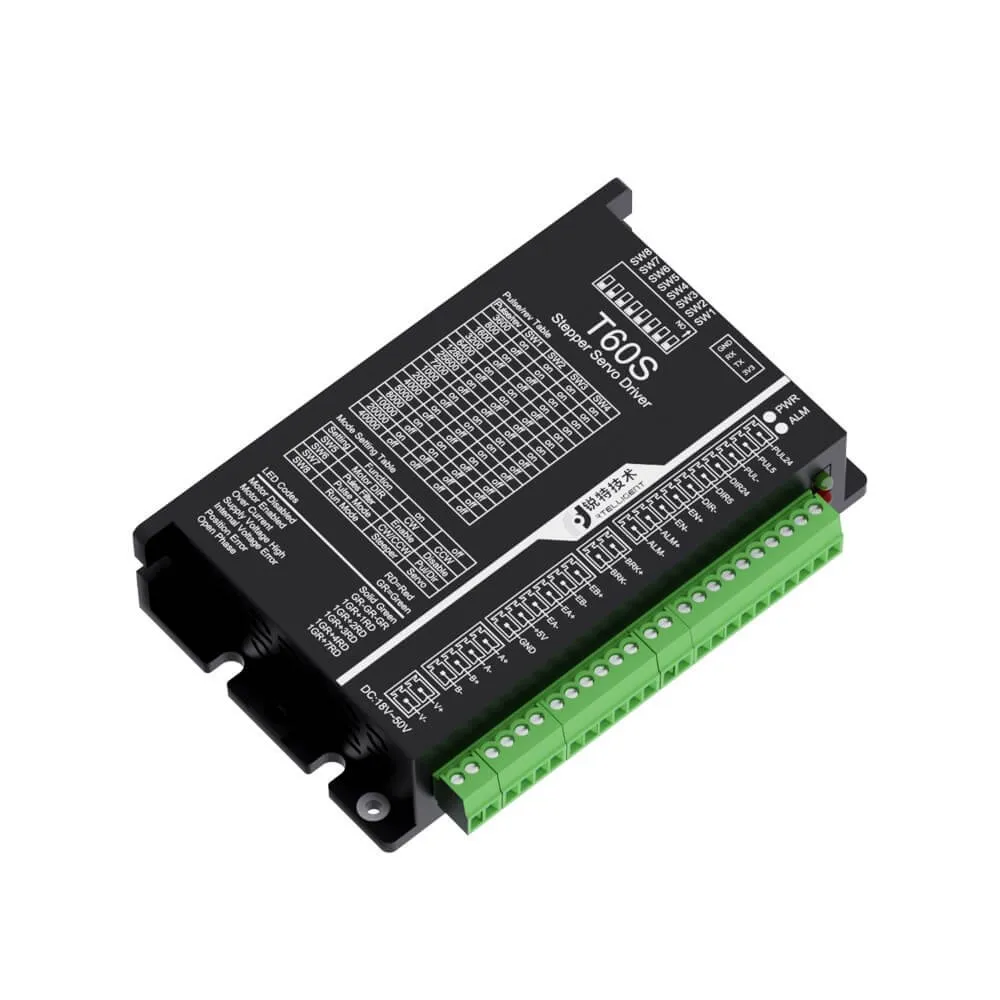

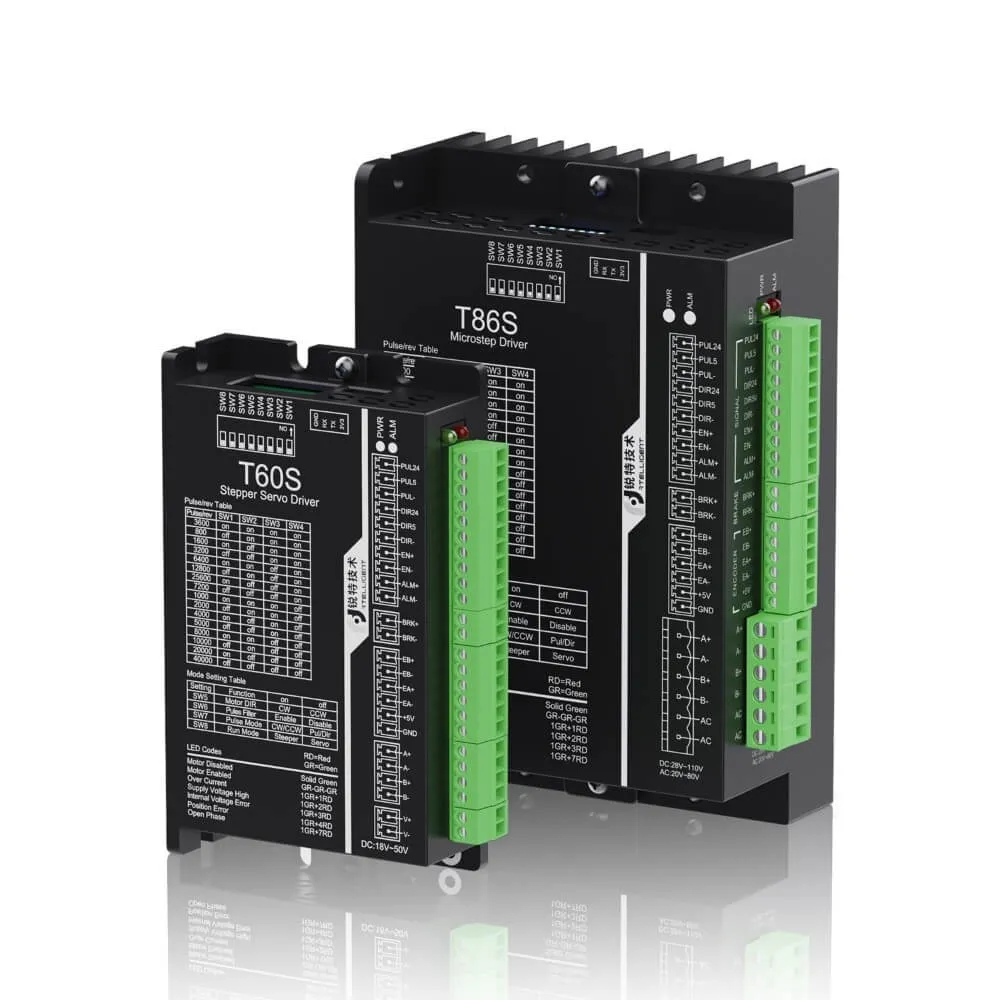

New Generation 2 Phase Closed Loop Stepper Drive T60S / T86S Overview
The T-S series represents an upgraded Generation of open-loop stepper drivers developed by Rtelligent, designed based on years of experience and expertise in stepper drive technology. Built on a new architecture and advanced control algorithms, this next-Generation driver significantly reduces low-speed motor resonance while offering enhanced resistance to electrical interference.
In addition, the T-S series supports non-inductive rotation detection, phase loss alarms, and other intelligent protection functions. It is compatible with multiple pulse command modes and features flexible DIP switch settings, providing reliable, stable, and adaptable performance for a wide range of motion control applications.
| Model No | T60S | T86S |
|---|---|---|
| Voltage range | 18–50VDC | 28~110VDC |
| AC input | Non suport | 20~80VAC |
| Current range | 6000mA | 8000mA |
| Matching motor | Closed loop motor below 60mm |
Closed loop motor below 86mm |
| Brake interface | Directly connect the brake wire | |
| Debugging interface | Serial port TTL3.3V | |
| Extended dip | 8 Bit | |
| Alarm output | 1 | |
| Pulse command voltage | 5V/24V independent port | |
| Pulse width setting | Software setting | |
| Direction inversion | Dip setting | |
| Instruction filter | Dip setting | |
| Pulse mode setting | PUL+DIR / CW+CCW dip setting | |
| Working mode | Open loop / Closed loop dip setting | |
